H-Beam

ID	Size	Section					Sectional	Unit	Moment of Inertia		Radius of Gyration		Modulus of Section
		H	B	tw	tf	r	area	Weight	Ix	Iy	rx	ry	Sx	Sy
		mm	mm	mm	mm	mm	cm2	kg/m	cm4	cm4	cm	cm	cm3	cm3
1	900×300	912	302	18	34	28	364	286	498000	15700	37.0	6.6	10900	1040
2		900	300	16	28	28	309.8	243	411000	12600	36.4	6.4	9140	843
3		890	299	15	23	28	270.9	213	345000	10300	35.7	6.2	7760	688
4	800×300	808	302	16	30	28	307.6	241	339000	138000	33.2	6.7	8400	915
5		800	300	14	26	28	267.4	210	29200	11700	33.0	6.6	7290	782
6		792	300	14	22	28	243.4	191	254000	9930	32.3	6.4	6410	662
7	700×300	708	302	15	28	28	273.5	215	237000	12900	29.4	6.9	6700	653
8		700	300	13	24	28	235.5	185	201000	10800	29.3	6.8	5760	722
9		692	300	13	20	28	211.5	166	172000	9020	28.6	6.5	4980	602
10	600×300	594	302	14	23	28	222.4	175	137000	10600	24.9	6.9	4620	701
11		588	300	12	20	28	192.5	151	118000	9020	24.8	6.9	4020	601
12		582	300	12	18	28	174.5	137	103000	7670	24.3	6.6	3530	511
13	600×200	612	202	13	23	22	107.7	134	103000	3180	24.6	4.3	3380	314
14		606	201	12	20	22	152.5	120	90400	2720	24.3	4.2	2980	271
15		600	200	11	17	22	134.4	106	77600	2280	24.0	4.1	2590	228
16		596	199	10	15	22	120.5	94.6	68700	1980	23.9	4.1	2310	199
17	500×300	488	300	11	18	26	163.5	128	71000	8110	20.8	7.0	2910	541
18		482	300	11	15	26	145.5	114	60400	6760	20.4	6.8	2500	451
19	500×200	506	201	11	19	20	131.3	103	56500	2580	20.7	4.4	2230	257
20		500	200	10	16	20	114.2	89.5	47800	2140	20.5	4.3	1910	214
21		496	199	9	14	20	101.3	79.5	41900	1840	20.3	4.3	1690	185
22	450×300	440	300	11	18	24	157.4	124	56100	8110	18.9	7.2	2550	541
23		434	299	10	15	24	135	106	46800	6690	18.6	7.0	2160	448
24	450×200	450	200	9	14	18	96.76	76	33500	1870	18.6	4.4	1490	187
25		446	199	8	12	18	84.3	66.2	26700	1580	18.5	4.3	1290	159
26	400×400	498	432	45	70	22	770.1	605	298000	94400	19.7	11.1	12000	4370
27		458	417	30	50	22	528.6	415	187000	60500	18.6	10.7	8170	2900
28		428	407	20	35	22	360.7	283	119000	39400	18.2	10.4	5570	1930
29		414	405	18	28	22	295.4	232	92800	31000	17.7	10.2	4480	1530
30		406	403	16	24	22	254.9	200	78000	26200	17.5	10.1	3840	1300
31		400	408	21	21	22	250.7	197	70900	23800	16.8	9.8	3540	1170
32		400	400	13	21	22	218.7	172	66600	22400	17.5	10.1	3330	1120
33		394	405	18	18	22	214.4	168	59700	20000	16.7	9.7	3030	985
34		394	398	11	18	22	186.8	147	56100	18900	17.3	10.1	2850	951
35		388	402	15	15	22	178.5	140	49000	16300	16.6	9.5	2250	809
36	400×300	390	300	10	16	22	136	107	38700	7210	16.9	7.3	1980	481
37		386	299	9	14	22	120.1	94.3	33700	6240	16.7	7.2	1740	418
38	400×200	400	200	8	13	16	84.12	66	23700	1740	16.8	4.5	1190	174
39		396	199	7	11	16	72.16	56.6	20000	1450	16.7	4.5	1010	145
40	350×350	356	352	14	22	20	202	159	47600	16000	15.3	8.9	2670	909
41		350	357	19	19	20	198.4	156	42800	14400	14.7	8.5	2450	809
42		350	350	12	19	20	173.9	137	40300	13600	15.2	8.8	2300	776
43		344	354	16	16	20	166.6	131	35300	11800	14.6	8.4	2050	669
44		344	348	10	16	20	146	115	33300	11200	15.1	8.8	1940	646
45		338	351	13	13	20	135.3	106	28200	9380	14.4	8.3	1670	534
46	350×250	340	250	9	14	20	101.5	79.7	21700	3650	14.6	6.0	1280	292
47		336	249	8	12	20	88.15	69.2	18500	3090	14.5	5.9	1100	248
48	350×175	350	175	7	11	14	63.14	49.6	13600	684	14.7	4.0	775	112
49		346	174	6	9	14	52.68	41.4	11100	792	14.5	3.9	641	91
50	300×300	304	301	11	17	18	134.8	106	23400	7730	13.2	7.6	1540	514
51		300	305	15	15	18	134.8	106	21500	7100	12.6	7.3	1440	466
52		300	300	10	15	18	119.8	94	20400	6750	13.1	7.5	1360	450
53		298	299	9	14	18	110.8	87	18800	6240	13.0	7.5	1270	417
54		294	302	12	12	18	107.7	84.5	16900	5520	12.5	7.2	1150	365
55	300×200	298	201	9	14	18	83.36	65.4	13300	1900	12.6	4.8	893	189
56		294	200	8	12	18	72.38	56.8	11300	1600	12.5	4.7	771	160
57	300×150	300	150	6.5	9	13	46.78	36.7	7210	508	12.4	3.3	481	67.7
58		298	149	5.5	8	13	40.8	32	6320	442	12.4	3.3	424	59.3
59	250×250	250	255	14	14	16	104.7	82.2	11500	3880	10.5	6.1	919	304
60		250	250	9	14	16	92.18	72.4	10800	3650	10.8	6.3	867	292
61		248	249	8	13	16	84.7	66.5	9930	3350	10.8	6.3	801	269
62		244	252	11	11	16	82.06	64.4	8790	2940	10.3	6.0	720	233
63	250×175	244	175	7	11	16	56.24	44.1	6120	984	10.4	4.2	502	113
64	250×125	250	125	6	9	12	37.66	29.6	4050	294	10.4	2.8	324	47
65		248	124	5	8	12	32.68	25.7	3540	255	10.4	2.8	285	41.1
66	200×200	208	202	10	16	13	83.69	65.7	6530	2200	8.8	5.1	628	218
67		200	204	12	12	13	7153	56.2	4980	1700	8.4	4.9	498	167
68		200	200	8	12	13	63.53	49.9	4720	1600	8.6	5.0	472	160
69	200×150	194	150	6	9	13	39.01	30.6	2690	507	8.3	3.6	277	67.6
70	200×100	200	100	5.5	8	11	27.16	21.3	1840	134	8.2	2.2	184	26.8
71		198	99	4.5	7	11	23.18	18.2	1580	114	8.3	2.2	160	23
72	175×175	175	175	7.5	11	12	51.21	40.2	2880	984	7.5	4.4	330	112
73	175×125	169	125	5.5	8	12	29.65	23.3	1530	261	7.2	3.0	181	41.8
74	175×90	175	90	5	8	9	23.04	18.1	1210	97.5	7.3	2.1	139	21.7
75	150×150	150	150	7	10	11	40.14	31.5	1640	563	6.4	3.8	219	75.1
76	150×100	148	100	6	9	11	26.84	21.1	1020	151	6.7	2.4	138	30.1
77	150×75	150	75	5	7	8	17.85	14	666	49.5	6.1	1.7	88.8	13.2
78	125×125	125	125	6.5	9	10	30.31	23.8	847	293	5.3	3.1	136	47
79	125×50	125	60	6	8	9	16.84	13.2	413	29.2	5.0	1321.0	66.1	9.73
80	100×100	100	100	6	8	10	21.9	17.2	383	134	4.2	2.5	76.5	26.7
81	100×50	100	50	5	7	8	11.85	9.3	187	14.8	4.0	1.1	37.5	5.91

Cellular Properties

	Section					Sectional	Sectional	Unit	Moment of Inertia		Radius of Gyration		Modulus of Section
	CELLULAR  BEAM	B	tw	tf	r	area (min)	area (max)	Weight	Ix	Iy	rx	ry	Sx	Sy
	mm	mm	mm	mm	mm	cm2	cm2	kg/m	cm4	cm4	cm	cm	cm3	cm3
1	1292	302	18	34	28	268.2	432.4	272.0	998665	15641	61.0	7.6	15458.7	1035.8
2	1275	300	16	28	28	225.8	369.8	231.1	822024	12626	60.3	7.5	12894.5	841.7
3	1261	299	15	23	28	193.0	326.5	201.4	687471	10271	59.7	7.3	10905.3	687.0
4	1144	302	16	30	28	232.1	361.4	230.5	681125	13797	54.2	7.7	11904.0	913.7
5	1133	300	14	26	28	202.1	314.1	200.5	584865	11720	53.8	7.6	10324.2	781.3
6	1122	300	14	22	28	178.8	289.7	181.8	506648	9920	53.2	7.5	9034.1	661.3
7	1002	302	15	28	28	211.6	317.8	205.8	477336	12875	47.5	48.0	9524.2	852.6
8	991	300	13	24	28	182.3	273.3	177.1	404956	10817	47.1	7.7	8172.7	721.1
9	980	300	13	20	28	159.0	248.9	158.4	345076	9017	46.6	7.5	7045.0	601.2
10	840	302	14	23	28	173.7	256.8	167.4	276105	10577	39.9	7.8	6570.2	700.4
11	832	300	12	20	28	151.2	221.8	145.1	237417	9015	39.6	7.7	5707.4	601.0
12	823	300	12	18	28	139.3	209.2	135.5	214120	8115	39.2	7.6	5200.6	541.0
13	866	202	13	23	22	124.1	203.7	127.2	206842	3170	40.8	5.1	4776.7	313.8
14	858	201	12	20	22	110.0	182.7	113.5	180442	2716	40.5	5.0	4208.5	270.2
15	849	200	11	17	22	95.8	161.8	99.9	154252	2274	40.1	4.9	3633.7	227.4
16	843	199	10	15	22	85.6	145.2	89.4	136174	1977	39.9	4.8	3229.5	198.7
17	690	300	11	18	26	132.1	185.7	123.7	142933	8111	32.9	7.8	4143.2	540.7
18	681	300	11	15	26	114.4	167.4	109.6	120775	6761	32.5	7.7	3544.7	450.7
19	716	201	11	19	20	98.7	154.4	98.3	113325	2577	33.9	5.1	3167.6	256.5
20	707	200	10	16	20	84.9	134.9	85.4	95432	2138	33.5	5.0	2699.6	213.8
21	701	199	9	14	20	75.1	119.7	75.6	83250	1843	33.3	5.0	2374.1	185.2
22	622	300	11	18	24	129.0	177.4	119.4	113259	8108	29.6	7.9	3642.9	540.6
23	613	299	10	15	24	109.5	152.9	102.2	93960	6690	29.3	7.8	3064.2	447.5
24	636	200	9	14	18	73.0	113.5	72.5	66698	1870	30.2	5.1	2097.4	187.0
25	630	199	8	12	18	63.3	99.0	63.1	57016	1579	30.0	5.0	1809.1	158.7
26	704	432	45	70	22	638.7	862.8	585.1	634380	94141	31.5	12.1	18018.1	4358.4
27	647	417	30	50	22	447.9	585.3	402.9	392322	60464	29.6	11.6	12120.7	2899.9
28	605	407	20	35	22	310.5	396.1	275.7	247021	39345	28.2	11.3	8169.2	1933.4
29	585	405	18	28	22	251.7	326.2	225.4	190421	31015	27.5	11.1	6511.5	1531.6
30	574	403	16	24	22	216.8	281.8	194.5	159631	26192	27.1	11.0	5566.7	1299.9
31	565	408	21	21	22	201.3	285.3	189.5	143413	23791	26.7	10.9	5076.6	1166.2
32	565	400	13	21	22	188.1	240.1	167.1	135655	22408	26.9	10.9	4802.0	1120.4
33	556	405	18	18	22	172.6	243.6	162.0	120163	19944	26.4	10.7	4318.7	984.9
34	556	398	11	18	22	161.3	204.6	142.8	113704	18920	26.6	10.8	4086.5	950.8
35	548	402	15	15	22	144.3	202.5	135.0	98431	16252	26.1	10.6	3592.6	808.6
36	551	300	10	16	22	113.1	152.1	103.3	78115	7206	26.3	8.0	2836.4	480.4
37	545	299	9	14	22	99.7	134.4	91.2	67751	6242	26.1	7.9	2485.7	417.6
38	565	200	8	13	16	65.3	97.3	63.2	47346	1735	26.9	5.2	1676.0	173.5
39	559	199	7	11	16	55.9	83.6	54.2	39826	1446	26.7	5.1	1424.1	145.4
40	503	352	14	22	20	172.7	222.6	154.2	97403	15999	23.8	9.6	3876.6	909.0
41	494	357	19	19	20	159.2	225.7	149.9	86502	14421	23.3	9.5	3502.1	807.9
42	494	350	12	19	20	149.2	191.2	132.8	81971	13583	23.4	9.5	3318.7	776.2
43	485	354	16	16	20	134.2	189.2	125.9	70977	11839	23.0	9.4	2924.0	668.9
44	485	348	10	16	20	125.7	160.1	111.5	67308	11243	23.1	9.5	2772.9	646.1
45	477	351	13	13	20	109.4	153.3	102.3	56565	9377	22.7	9.3	2371.9	534.3
46	480	250	9	14	20	83.5	114.1	77.0	43677	3650	22.9	6.6	1820.7	292.0
47	474	249	8	12	20	72.3	99.2	66.8	37112	3091	22.7	6.5	1565.5	248.3
48	494	175	7	11	14	48.7	73.2	47.4	27003	984	23.5	4.5	1093.3	112.4
49	488	174	6	9	14	40.4	61.2	39.5	21992	791	23.3	4.4	900.7	90.9
50	429	301	11	17	18	115.1	148.6	102.9	47569	7731	20.3	8.2	2219.3	513.7
51	423	305	15	15	18	108.2	153.2	101.8	43339	7100	20.0	8.1	2049.1	465.6
52	423	300	10	15	18	102.1	132.1	91.4	41310	6753	20.1	8.1	1953.2	450.2
53	420	299	9	14	18	95.0	121.8	84.6	38072	6240	20.0	8.1	1812.3	417.4
54	414	302	12	12	18	86.8	122.1	81.3	33697	5513	19.7	8.0	1626.0	365.1
55	420	201	9	14	18	67.5	94.3	63.0	26760	1898	19.9	5.3	1273.8	188.8
56	414	200	8	12	18	58.5	82.0	54.7	22673	1603	19.7	5.2	1094.1	160.3
57	423	150	6.5	9	13	35.3	54.8	35.0	14285	507	20.1	3.8	675.4	67.6
58	420	149	5.5	8	13	31.1	47.5	30.6	12502	442	20.0	3.8	595.1	59.3
59	352	255	14	14	16	84.0	119.0	79.0	23101	3873	16.6	6.8	1312.6	303.8
60	352	250	9	14	16	78.9	101.4	70.3	21935	3648	16.7	6.8	1246.3	291.8
61	349	249	8	13	16	72.9	92.8	64.7	20059	3347	16.6	6.8	1149.0	268.8
62	343	252	11	11	16	66.2	93.0	62.0	17531	2937	16.3	6.7	1020.8	233.1
63	343	175	7	11	16	46.1	63.2	42.6	12236	984	16.3	4.6	712.5	112.5
64	352	125	6	9	12	28.8	43.8	28.2	8035	294	16.7	3.2	456.5	47.0
65	349	124	5	8	12	25.3	37.7	24.5	7003	255	16.6	3.2	401.2	41.1
66	292	202	10	16	13	71.3	92.1	63.7	13273	2199	13.6	5.6	908.0	217.8
67	281	204	12	12	13	57.3	81.3	53.9	9989	1700	13.2	5.5	711.0	166.7
68	281	200	8	12	13	54.0	70.0	48.4	9516	1601	13.3	5.4	677.3	160.1
69	272	150	6	9	13	32.1	43.7	29.5	5349	507	12.9	4.0	392.6	67.6
70	281	100	5.5	8	11	57.3	68.3	49.1	9989	1700	13.2	5.5	711.0	340.0
71	278	99	4.5	7	11	54.2	63.1	45.9	9532	1601	13.3	5.4	685.4	323.4
72	246	175	7.5	11	12	43.4	56.5	39.0	5835	983	11.6	4.8	475.3	112.4
73	237	125	5.5	8	12	24.1	33.4	22.4	3040	261	11.2	3.3	256.6	41.7
74	246	90	5	8	9	17.9	26.6	17.3	2412	97	11.6	2.3	196.5	21.6
75	210	150	7	10	11	33.8	44.3	30.5	3295	563	9.9	4.1	313.8	75.1
76	207	100	6	9	11	21.5	30.4	20.2	2029	150	9.7	2.7	195.9	30.1
77	210	75	5	7	8	13.3	20.8	13.3	1306	49	9.9	1.9	124.4	13.2
78	175	125	6.5	9	10	25.4	33.6	23.0	1705	293	8.2	3.4	195.5	46.9
79	175	60	6	8	9	12.3	19.8	12.5	815	29	8.1	1.5	93.4	9.7
80	139	100	6	8	10	18.2	24.2	16.6	761	134	6.5	2.7	109.4	26.7
81	139	50	5	7	8	8.8	13.8	8.8	365	15	6.4	1.3	52.5	5.9

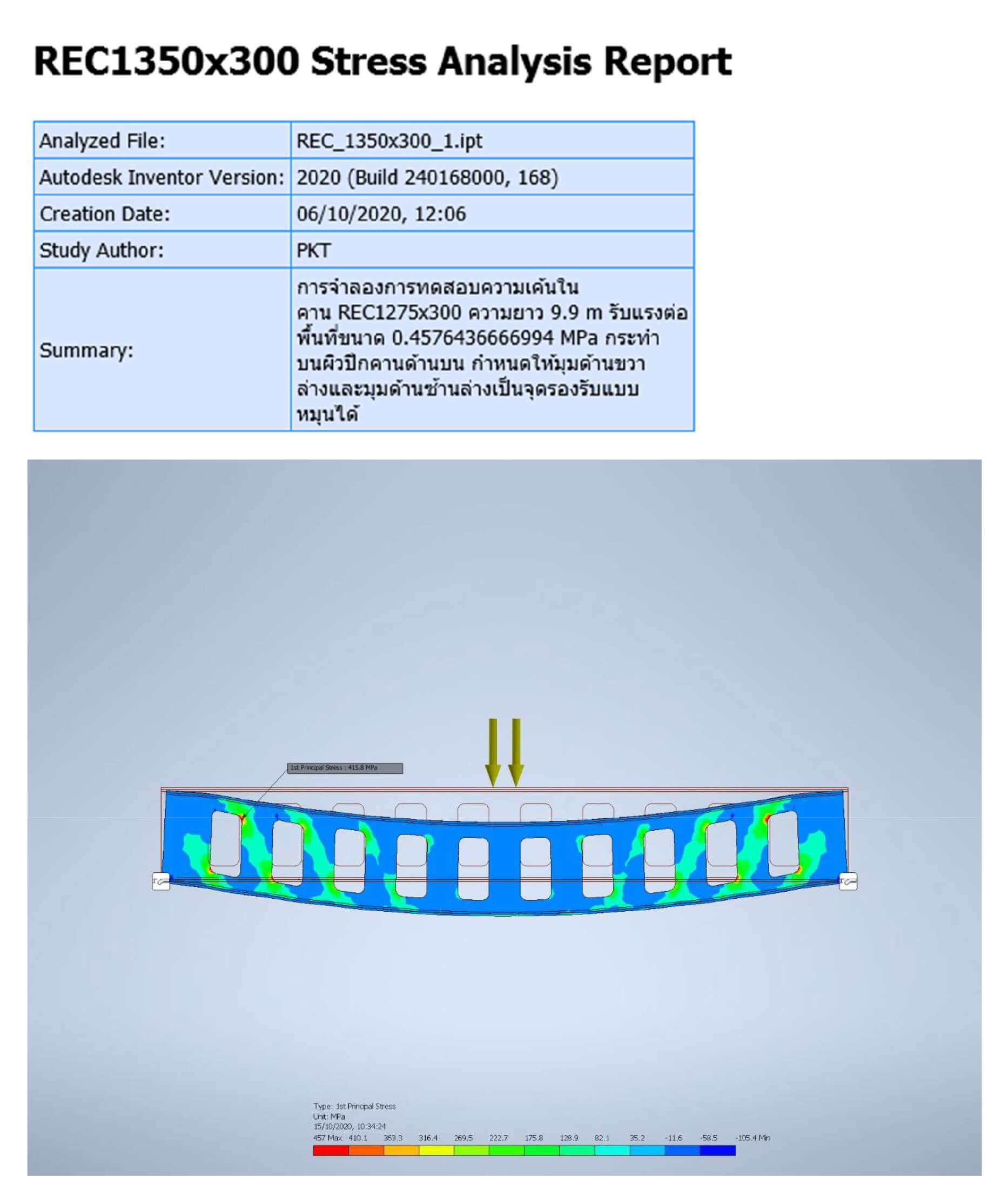

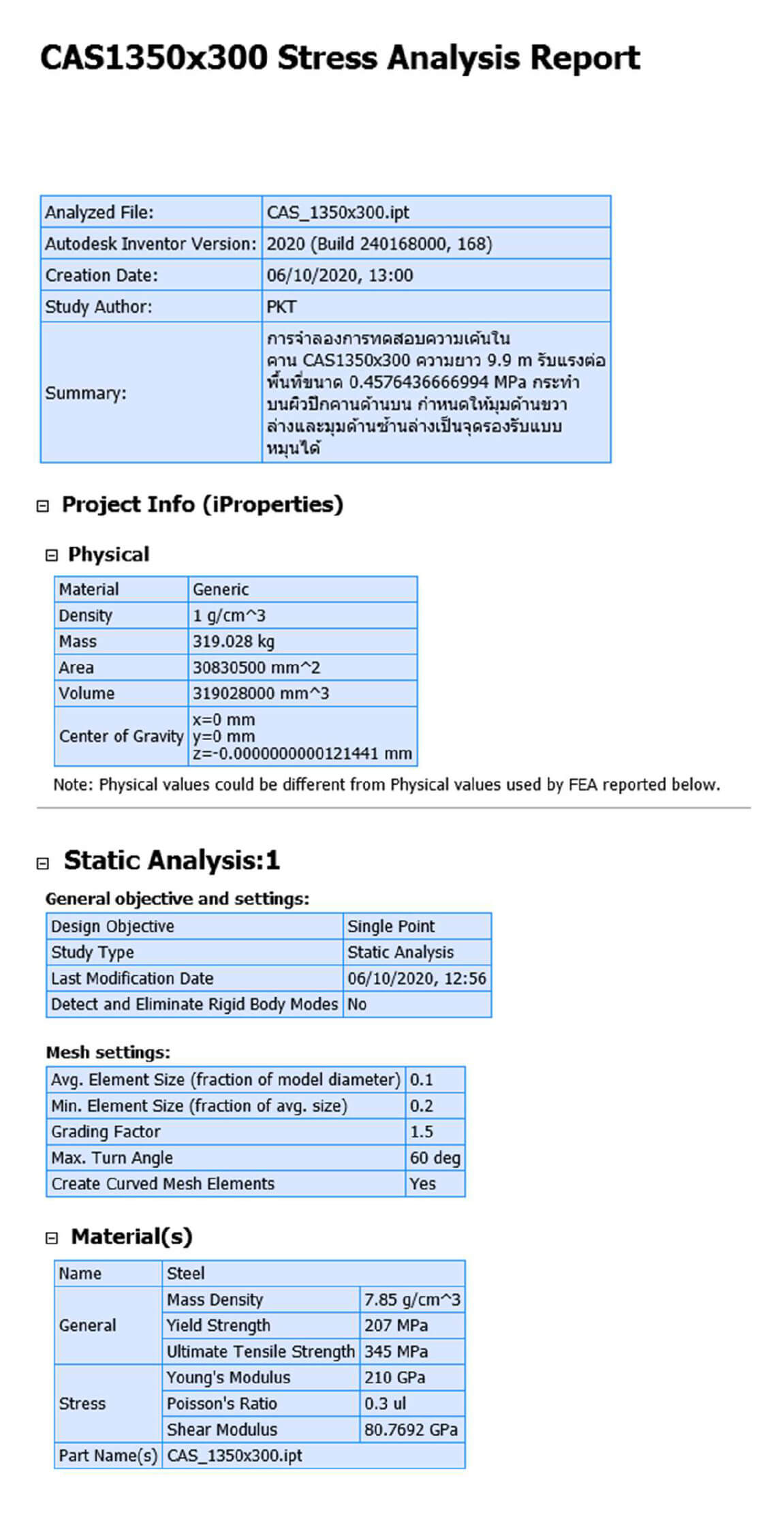

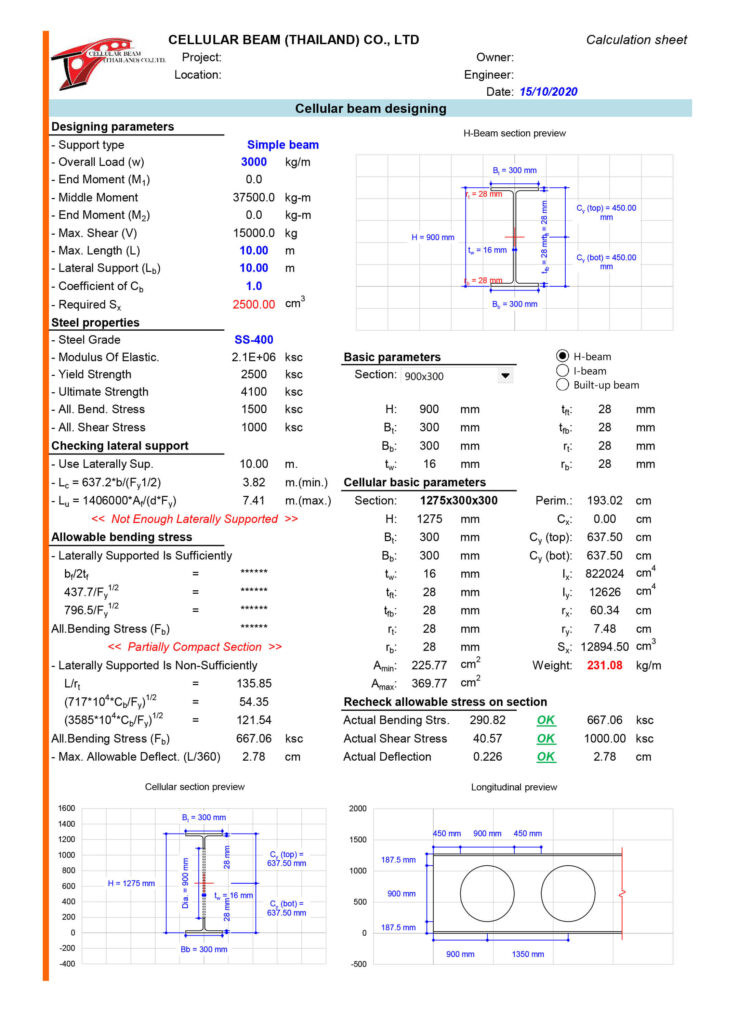

OpenWeb
